TOWAGE SERVICES

24-Hour Service

Recognized as one of Trinidad and Tobago’s preferred Towage providers, National Energy has been providing reliable towage services to the energy sector for over 20 years.

Ranging in power from 12-55 tonnes bollard pull, our fleet of tugs, workboats, launch, and an offshore supply vessel performs a wide range of manoeuvres, including:

  • Harbour towage
  • Mooring/Unmooring
  • Rig relocation
  • Deck cargo transport
  • Personnel transport

Our highly manoeuvrable vessels are ready to serve your business needs, at a competitive price, on a 24-hour basis at all local and regional ports.

Contact:
(868) 636-8847 (TUGS)
necmarine@nationalenergy.tt
fadeIn

OUR VESSELS

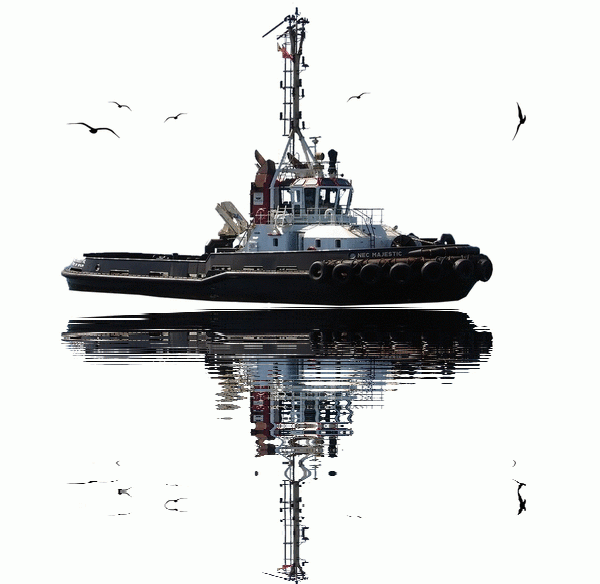

NEC MAJESTIC

1 2 3

Our vessels are compact, highly manoeuvrable power-houses, wih a wide range of equipment capacity. We operate a rigorous maintanance management programme that upholds our high standards of excellence.

Specifications
Make/Type:
Damen / ASD Tug 3110.
Beam Moulded:
10.20m
Depth Moulded:
4.8m
Draft Designed:
4.75m
Classification:
Lloyd's Register of Shipping (LRS) 100A1+ LMCG Notation. zxczxczxczxczxc
Generators:
Two Caterpillar Model 3500 Series.
Propulsion Unit:
Aquamaster rudder-propelled type.
Fuel Capacity:
135.3m3
Fresh Water Capacity:
19.2m3
Speed:
12 knots
Bollard Pull:
55 tons (ahead and astern).
Horsepower:
4750 B.H.P.
Accommodation:
Fixed bed, 8 persons.
Rescue Boat:
One FRC.
Towing Equipment:
Aft: 135 brake force. Wire capacity of 500m @ 48mm diameter. Remote control in the wheelhouse.
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.
Firefighting:
Two units, remote-controlled water/foam monitors 2 x 600m3/hr Capacity.
Foam Tank Capacity:
23.6m3

DESC2

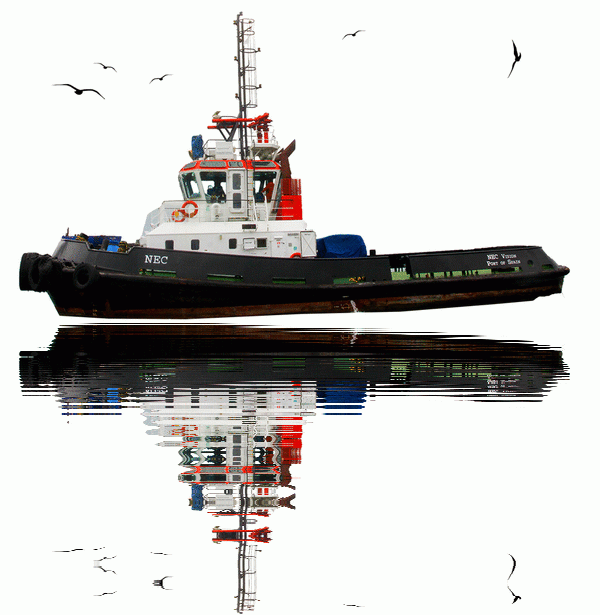

NEC VISION

1 2 3

DESC

Specifications
Make/Type:
Damen / Stan Tug 2608.
Length Overall:
26.09m
Beam Moulded:
7.94m
Depth Moulded:
4m
Draft Designed:
3.9m
Classification:
Lloyd’s Register of Shipping (LRS) 100A1+ LMC Notation.
Main Engines:
Two Caterpillar Model 3512 B TA.
Fuel Capacity:
80.1m3
Fresh Water Capacity:
12.2m3
Speed:
12.4 knots
Bollard Pull:
53 tons
Horsepower:
3822 B.H.P.
Accommodation:
Fixed bed, 8 persons.
Rescue Boat:
One.
Towing Equipment:
Aft: 135 brake force. Wire capacity of 500m @ 48mm diameter. Remote control in the wheelhouse.
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.
Firefighting:
Two water/foam monitors with 1000 m3/hr Capacity.
Foam Tank Capacity:
5.7m3

DESC2

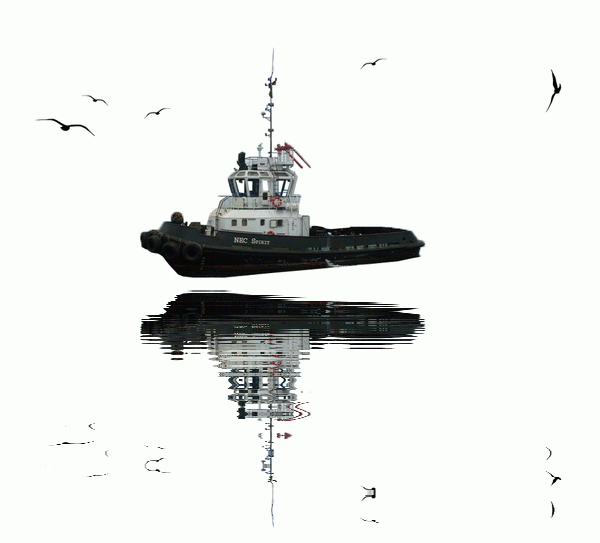

NEC SPIRIT

1 2 3

DESC

Specifications
Make/Type:
Damen / Stan Tug 2208.
Length Overall:
22.57m
Beam Moulded:
7.84m
Depth Moulded:
3.7m
Draft Designed:
3.5m
Classification:
Lloyd’s Register of Shipping (LRS) 100A1+ LMC Notation.
Main Engines:
Two Caterpillar Model 3512 B TA.
Fuel Capacity:
38.8m3
Fresh Water Capacity:
8.6m3
Deck Load Capacity:
2 tons/m2
Speed:
11.8 knots
Bollard Pull:
40 tons
Horsepower:
2720 B.H.P.
Accommodation:
Fixed bed, 8 persons.
Rescue Boat:
One.
Towing Equipment:
One disc-type towing hook aft- SWL 450kN. Remote control in the wheel house
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.
Firefighting:
Two water/foam monitors with 1000 m3/hr.
Foam Tank Capacity:
3.4m3

KM2

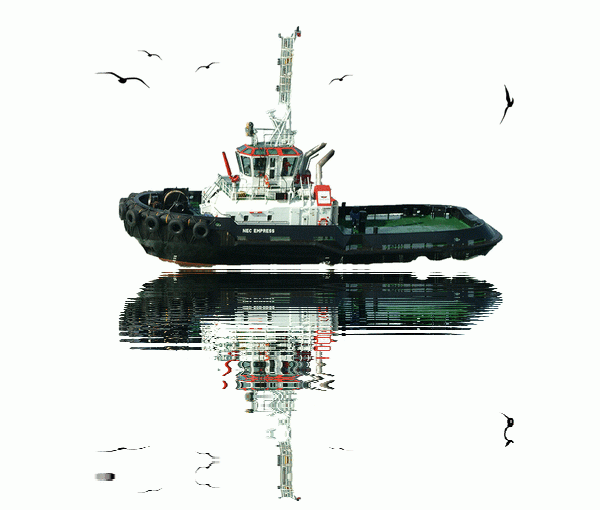

NEC EXPRESS

1 2 3

DESC

Specifications
Make/Type:
Damen / ASD Tug 3110.
Length Overall:
30.80m
Beam Moulded:
10.20m
Depth Moulded:
4.8m
Draft Designed:
4.75m
Classification:
Lloyd’s Register of Shipping (LRS) 100A1+ LMC Notation.
Generators:
Two Caterpillar Model 3300 Series.
Propulsion Unit:
Aquamaster rudder-propelled type.
Fuel Capacity:
135.3m3 Fresh
Fresh Water Capacity:
19.2m3
Deck Load Capacity:
8 tons
Speed:
12 knots
Bollard Pull:
55 tons (ahead and astern)
Horsepower:
4750 B.H.P.
Accommodation:
Fixed bed, 8 persons.
Towing Equipment:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.
Firefighting:
Two units, remote-controlled water/foam monitors, 2 x 600m3/hr; Two fire pumps, engine driven, capacity of 700 m3/hr @11.5 bars; 1 CO2 extinguishing system for engine room
Foam Tank Capacity:
23.6m3

KM2

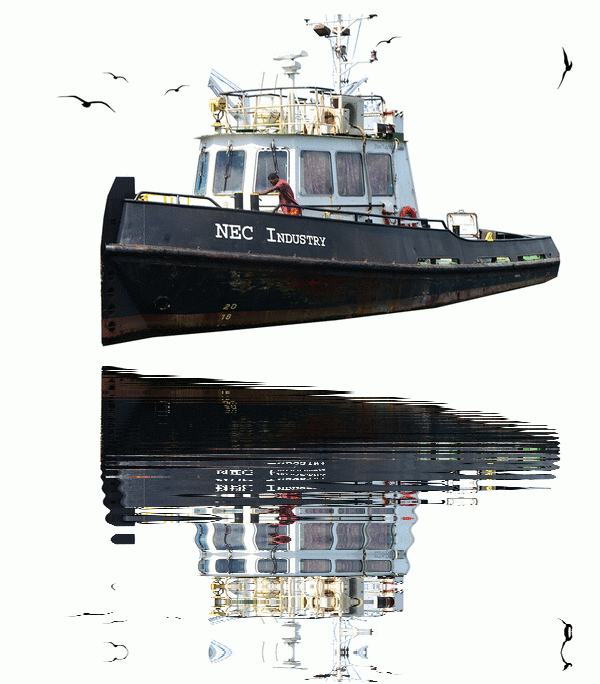

NEC INDUSTRY

1 2 3

DESC

Specifications
Make/Type:
Damen / Stan Tug 1605.
Length Overall:
16.89m
Beam Moulded:
5.29m
Draft Designed:
2.25m
Main Engines:
Two Caterpillar Model 3408c TA.
Fuel Capacity:
13.7m3
Fresh Water Capacity:
0.7m3
Deck Load Capacity:
8 tons
Speed:
10 knots
Bollard Pull:
12.4 tons
Horsepower:
940 B.H.P.
Accommodation:
Fixed bed, 4 persons.
Towing Equipment:
One set quick release electro-hydraulic towing hook, with remote control in wheel house.

KM2

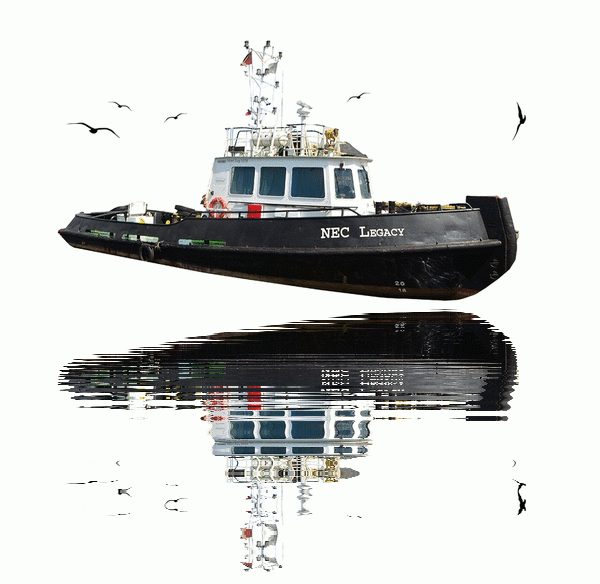

NEC LEGACY

1 2 3

DESC

Specifications
Make/Type:
Damen / Stan Tug 1605.
Length Overall:
16.89m
Beam Moulded:
5.29m
Draft Designed:
2.25m
Main Engines:
Two Caterpillar Model 3408c TA.
Fuel Capacity:
13.7m3
Fresh Water Capacity:
0.7m3
Deck Load Capacity:
8 tons
Speed:
11.8 knots
Bollard Pull:
12.4 tons
Horsepower:
940 B.H.P.
Accommodation:
Fixed bed, 4 persons.
Towing Equipment:
One set quick release electro-hydraulic towing hook, with remote control in wheel house.

KM2

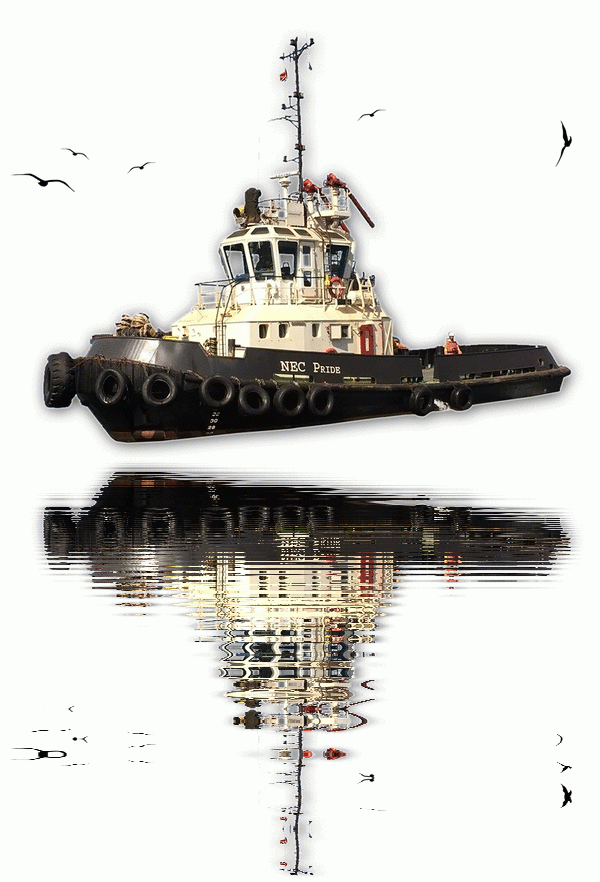

NEC PRIDE

1 2 3

DESC

Specifications
Make/Type:
Damen / Stan Tug 2208.
Length Overall:
22.57m
Beam Moulded:
7.84m
Depth Moulded:
3.7m
Draft Designed:
3.5m
Classification:
Lloyd’s Register of Shipping (LRS) 100A1+ LMC Notation.
Main Engines:
Two Caterpillar Model 3512 B TAs.
Fuel Capacity:
36.8m3 Fresh
Fresh Water Capacity:
8.6m3
Deck Load Capacity:
2 tons/m2
Speed:
11.8 knots
Bollard Pull:
40 tons
Horsepower:
2720 B.H.P.
Accommodation:
Fixed bed, 8 persons.
Rescue Boat:
One.
Towing Equipment:
One disc-type towing hook aft- SWL 450kN. Remote control in the wheel house.
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.

KM2

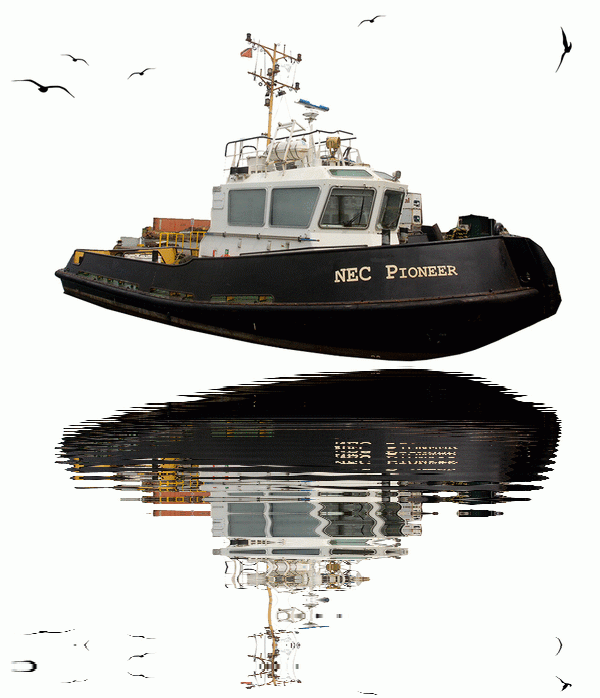

NEC PIONEER

1 2 3

DESC

Specifications
Make/Type:
DAMEN Stan Tug 1606.
Length Overall:
16.56m
Beam Moulded:
5.54m
Depth Moulded:
2.52m
Draft Designed:
2.35m
Main Engines:
2x Caterpillar C18 ACERT.
Speed:
11.20 knots
Bollard Pull:
16.53 tons
Horsepower:
896 bkW at 1800rpm.
Towing Equipment:
One disc-type towing hook aft- SWL 450kN. Remote control in the wheel house.
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house

KM2

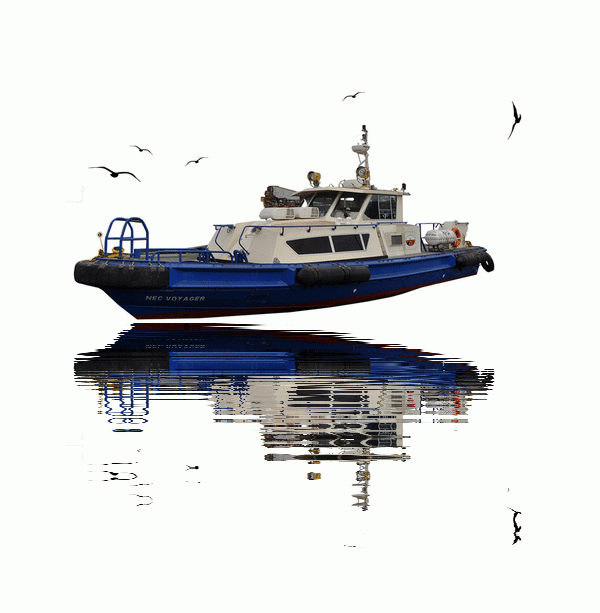

NEC VOYAGER

1 2 3

DESC

Specifications
Make/Type:
Damen Fast Crew Supplier 1605.
Length Overall:
16.15m
Beam Moulded:
5.40m
Depth Moulded:
1.85m
Draft Designed:
0.85m
Main Engines:
2 x Caterpillar C18 TA-B.
Propulsion Unit:
2 x KaMeWa FF 375S Water Jets.
Speed:
28.0 knots
Horsepower:
896 bkW at 2100rpm.
Accommodation:
15 persons.
Towing Equipment:
One disc-type towing hook aft- SWL 450kN. Remote control in the wheel house.
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.

KM2

NATIONAL ENERGY EXPLORER

1 2 3

DESC

Specifications
Make/Type:
Damen Fast Crew Supplier 5009 (DP1).
Length Overall:
53.25m
Beam Moulded:
10.10m
Depth Moulded:
4.70m
Draft Designed:
3.20m
Classification:
100A1+ SCC Workboat, Mono, HSC, G6, ECO, LMC DP (AM).
Main Engines:
4x Caterpillar 3512C TAs.
Propulsion Unit:
4x Fixed pitch propellers.
Deck Load Capacity:
240m3
Speed:
22.8 knots
Horsepower:
4472 kW (6000 bhp) at 1600-1800.
Accommodation:
Four crew cabins (eight persons); 80 passengers, pantry and mess room.
Rescue Boat:
One.
Towing Equipment:
One disc-type towing hook aft- SWL 450kN. Remote control in the wheel house.
Fwd:
135 tons brake force. Rope capacity of 150m @ 115m diameter, with remote control in the wheel house.
Firefighting:
NOVEC 1230.
